Our Products
The EX SUADS configuration.
Our latest Counter UAS addition and part of the SUADs family of systems.
Our family of electro-optical and infrared sensors are configurable in a variety of combinations.
Featured Products

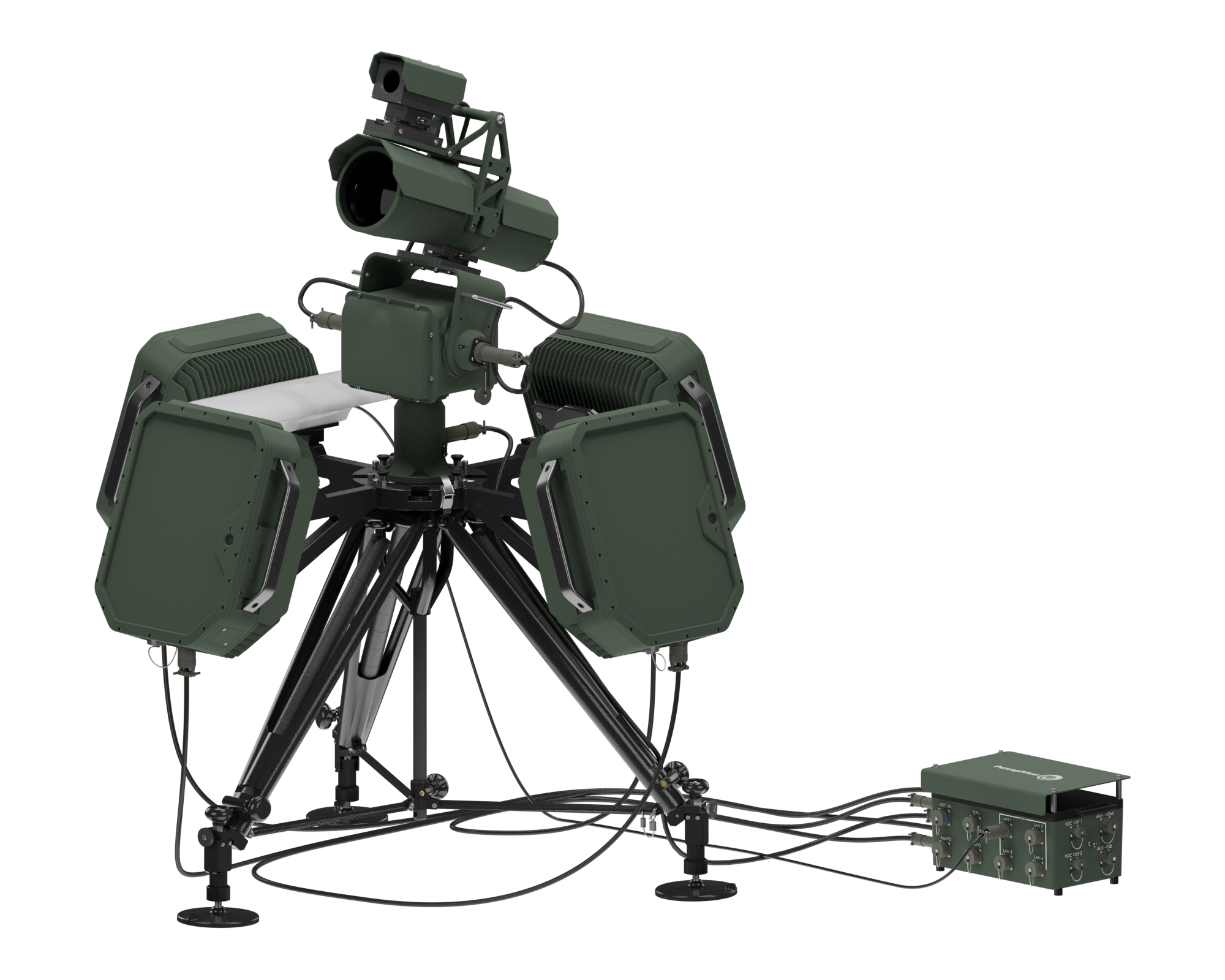

EX SUADS / TSN Shield360
Expeditionary Counter UAS
For stand-alone or System-of-Systems integration with layered sensing. View targets in live and recorded video and sensor detections on our mapping interface.
Includes our HD daylight and infrared cameras, EchoShield radar sensors, RemoteID, and ADSB. Monitor systems across multiple locations with federation support. Identify human-sized targets up to 7km with 550mm mid-wave infrared (3-5µm) HD-SDI.
EO and IR cameras, 4x active radars, RemoteID, GNSS for 360° coverage.
Fly-away transport in 10 or fewer Pelican cases as checked luggage
Mapping interface and C2: AwareView (TSN Shield360) or MEDUSA (EX SUADS) for viewing detections and managing sensors with manual or automated actions
Integration-ready for external systems to support remote cues, COPs, and classifiers
ADSB, CoT ingress/egress, and cloud data support
Automatic, remote, integrated or manual target tracking capabilities with tracking assist
Annotated, un-annotate,d and stabilized video feeds
Sensor Hub for all sensor connections including power and network distribution.
A shared visual representation of your operational airspace that provides real-time situational awareness.
Displays and tracks what matters most without the noise and clutter.
Interactive raster and vector map views of all deployed system sensors, detections, and identification data.
Automatic and manual slew of cameras.
Automatic action zones
Configurable threat detection thresholds
Federation support to display detections from multiple deployed systems, near or far, in a single view.
Default support for PerceptView camera systems, radar, RemoteID, ADSB, and CoT ingress/egress.
Our adherence to OpenAPI standards ensures long-term ease of integration with Command and Control systems and expansion of sensor and effector support while reducing proprietary lock-in.

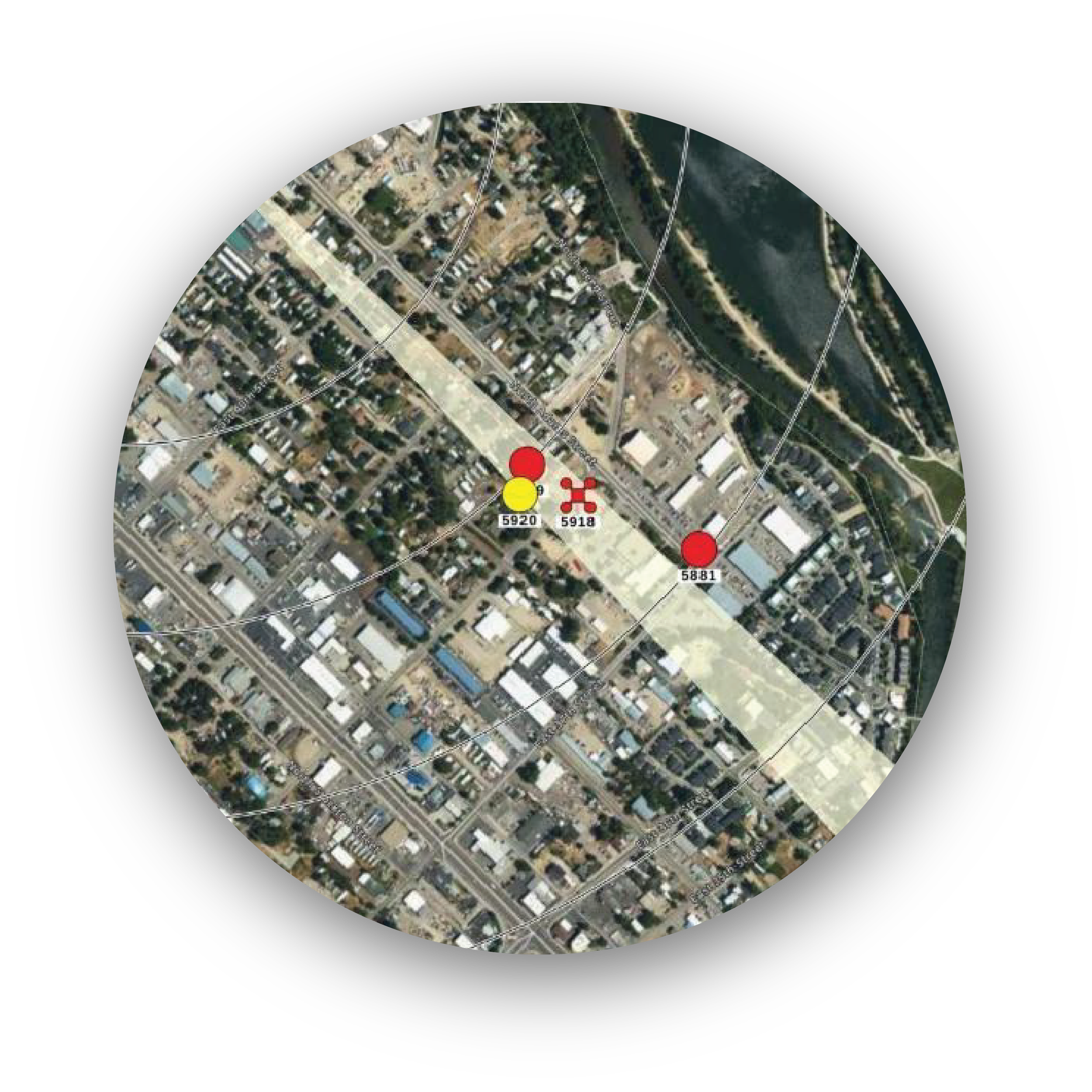

AwareView
Common Operating Picture
Features our HD daylight and long-range HD infrared cameras. Identify human-sized targets up to 8km with 785mm mid-wave infrared (3-5µm) HD-SDI with Group 1 drone visibility to 5k and Group 2 to 10k.
14 to 0.9-degree FOV, HOT sensor MTBF 20,000 hours
Multi-modal manual and autonomous tracking control via keyboard, mouse, or game controller
Record and save video with time-stamped operator notes.
Automatic and manual slew of cameras, automatic action zones, and configurable threat detection thresholds allow displaying and tracking what matters most without the noise and clutter.
Federation support to display detections from multiple deployed systems, near or far, in a single view.
Counter UAS Tactical System
PV Tactical Long Range
Remote control user interface for Video Target Tracker with side-by-side EO and IR video feeds
Multi-modal manual and autonomous tracking control via keyboard, mouse, or game controller
Record and save video with time-stamped operator notes
Tunable long-range focus and autonomous tracking motion control for fast-moving objects
Included with all camera systems.
User Interface For Remote Camera System Control
RemoteView
Camera System Configurations

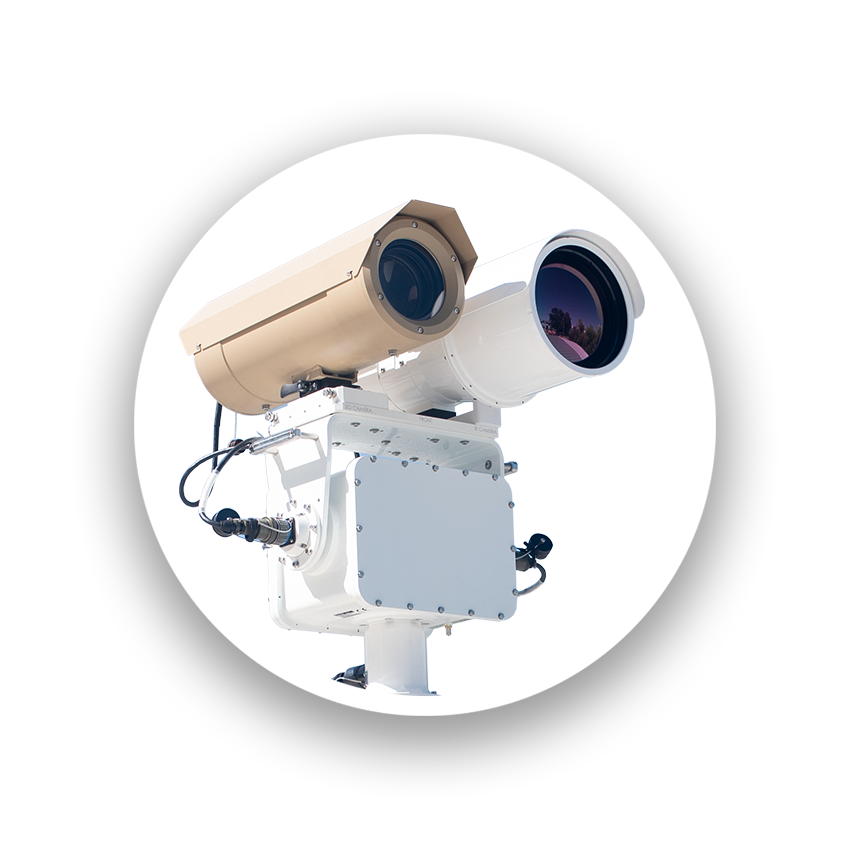

PV Long-Range HD
PV90-785 HD-800
Identify human-sized targets up to 8km with 785mm mid-wave infrared (3-5µm) HD-SDI
16.6 to 0.9-degree FOV, HOT sensor MTBF 20,000 hours
800mm electro-optical HD-SDI and SD sensor with 20mm to 800mm focal length

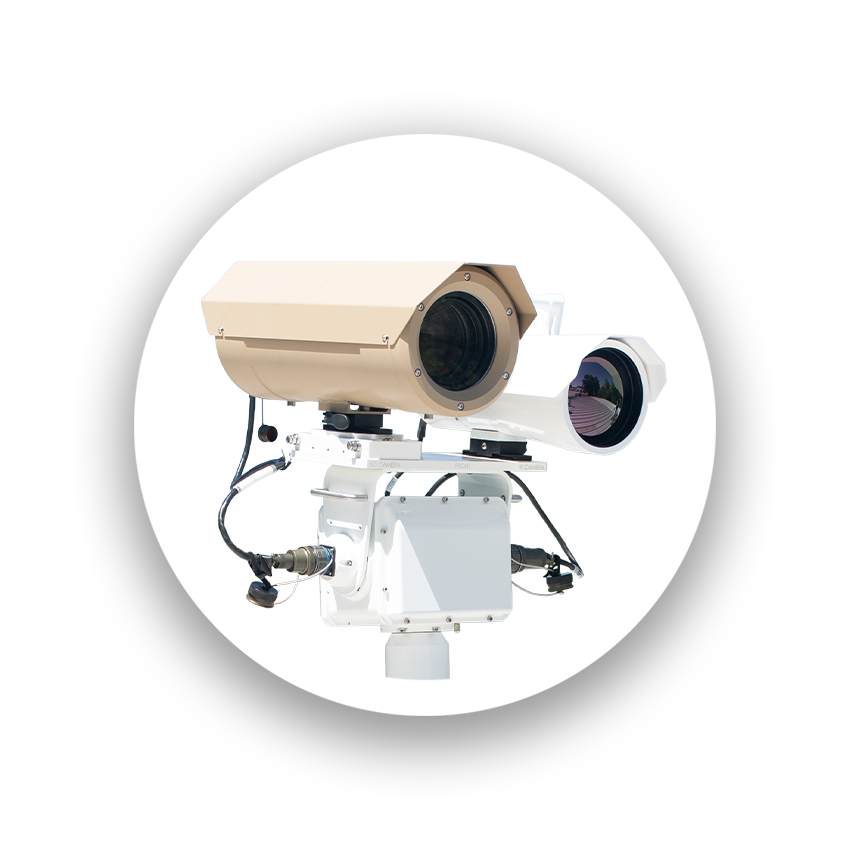

PV Mid-Range HD-SDI
PV50-550HD-9520HD
Identify human-sized targets up to 7km with 550mm mid-wave infrared (3-5µm) HD-SDI
13.3 to 1 degree FOV, HOT sensor MTBF 20,000 hours
Tactical HD-SDI electro-optical sensor 30x optical zoom
PV Mid-Range SD
PV50-550 SD-800
Identify human-sized targets up to 4.5km with 550mm mid-wave infrared (3-5µm) SD
18 to 1 degree FOV, HOT sensor MTBF 20,000 hours
800mm electro-optical HD-SDI and SD sensor with 20mm to 800mm focal length
Electronics Enclosures
Video Target Tracker
PV-VTTR
Real-time situational awareness, identification and closed-loop video tracking
Long-range detect, track and identify with four closed-loop tracking algorithms
Endpoints available for all motion and tracking of pan, tilt and zoom (PTZ) systems

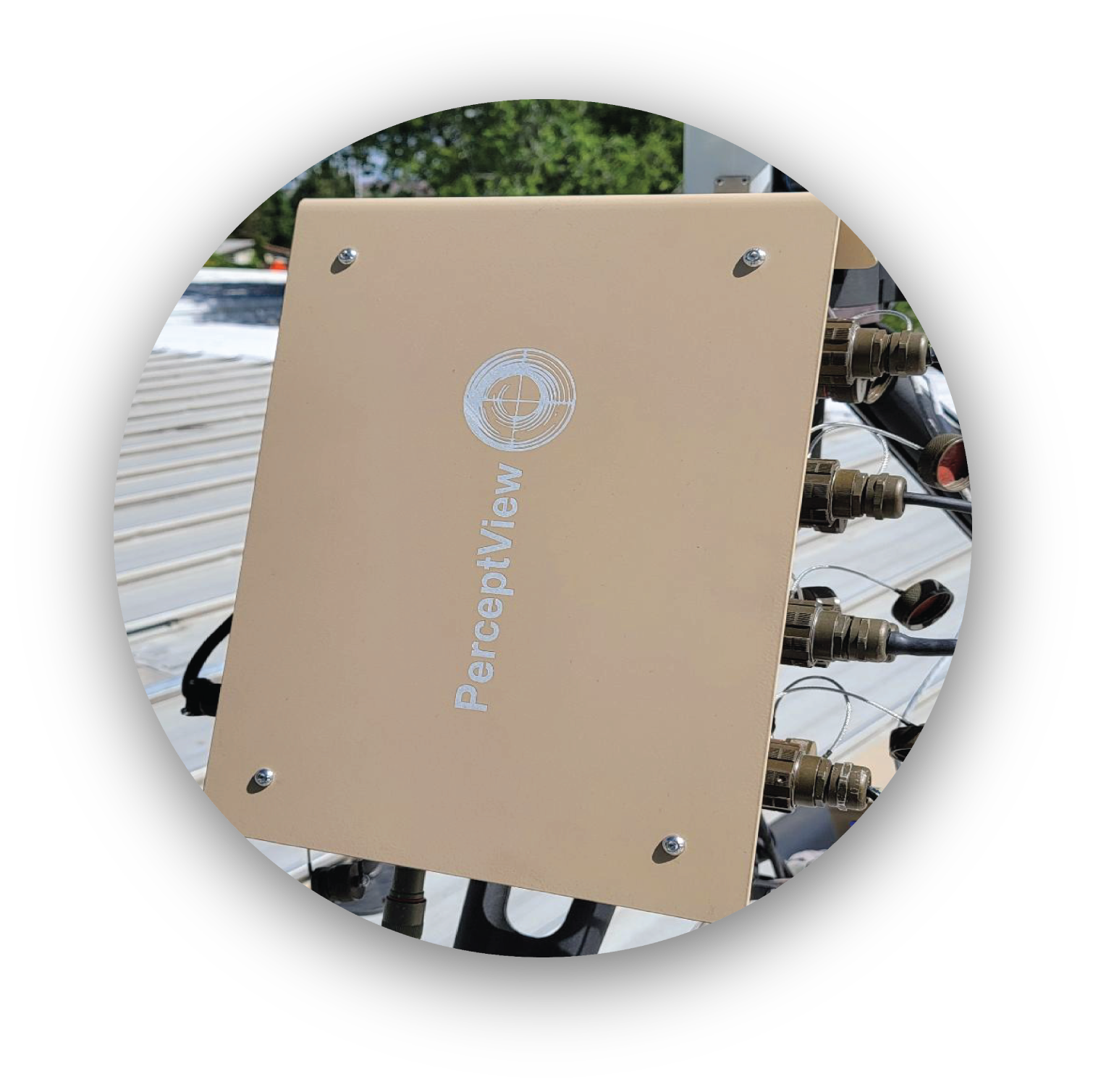

Rugged Power, POE and Fiber Optic Connections Appliance
POE Net Power
A rugged enclosure equipped with:
1x 100-240 VAC IN port
7x 802.3+ POE ports
4 100-240 VAC network relay-controlled power OUT ports
1x single mode fiber optics port
1x multi-mode fiber optics port
1x managed network switch
Mil spec connectors provide environmentally protected connections for a multitude of environments. Additional cabling and mounting brackets available.
Available for use and purchase as a stand-alone component.
Sensor Connections Plus Power & Network Distribution
Sensor Hub
Power and network distribution for all system sensors in single edge enclosure.
Low SWAP, high portability.
Supports:
4x Echidyne Radars
GNSS
EO/IR Cameras
Single and Multi-Mode Fiber Optic
28VDC IN (1x) and 28VDC OUT (2x)
POE Ethernet Ports (4x)
Gb Ethernet Port
Pairs with EX SUADS and TSN Shield 360. Not available for purchase as a stand-alone component.
We Consult & Configure
Let our team of experts answer your questions and help customize a hardware and software combination to best suit your needs.
